This is a pre-order for the YH-22 Hardware kit. We are aiming to start shipping in Early December 2024

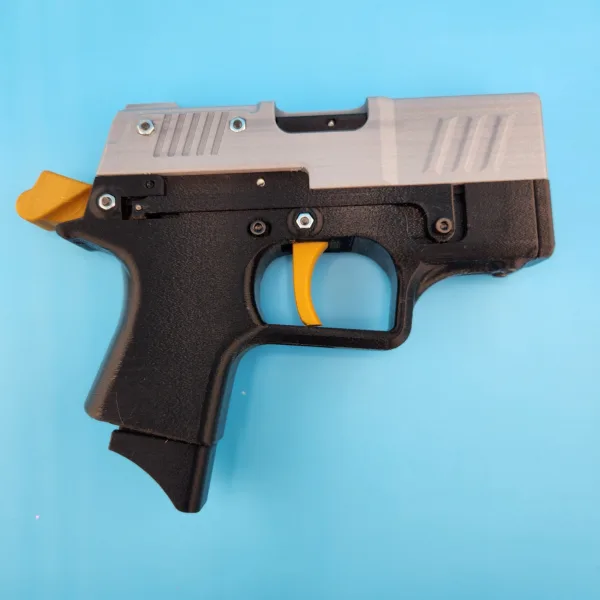

The first successful 3d printer proprietary semi auto pistol originally developed by , now with an internal ejector, ergonomic tweaks, and availability in multiple sizes and fully available to the public and out of beta purgatory.
Intermediate builders only. We do not take responsibility for any injury or illegal activities perpetrated with these files. Print at your own risk.

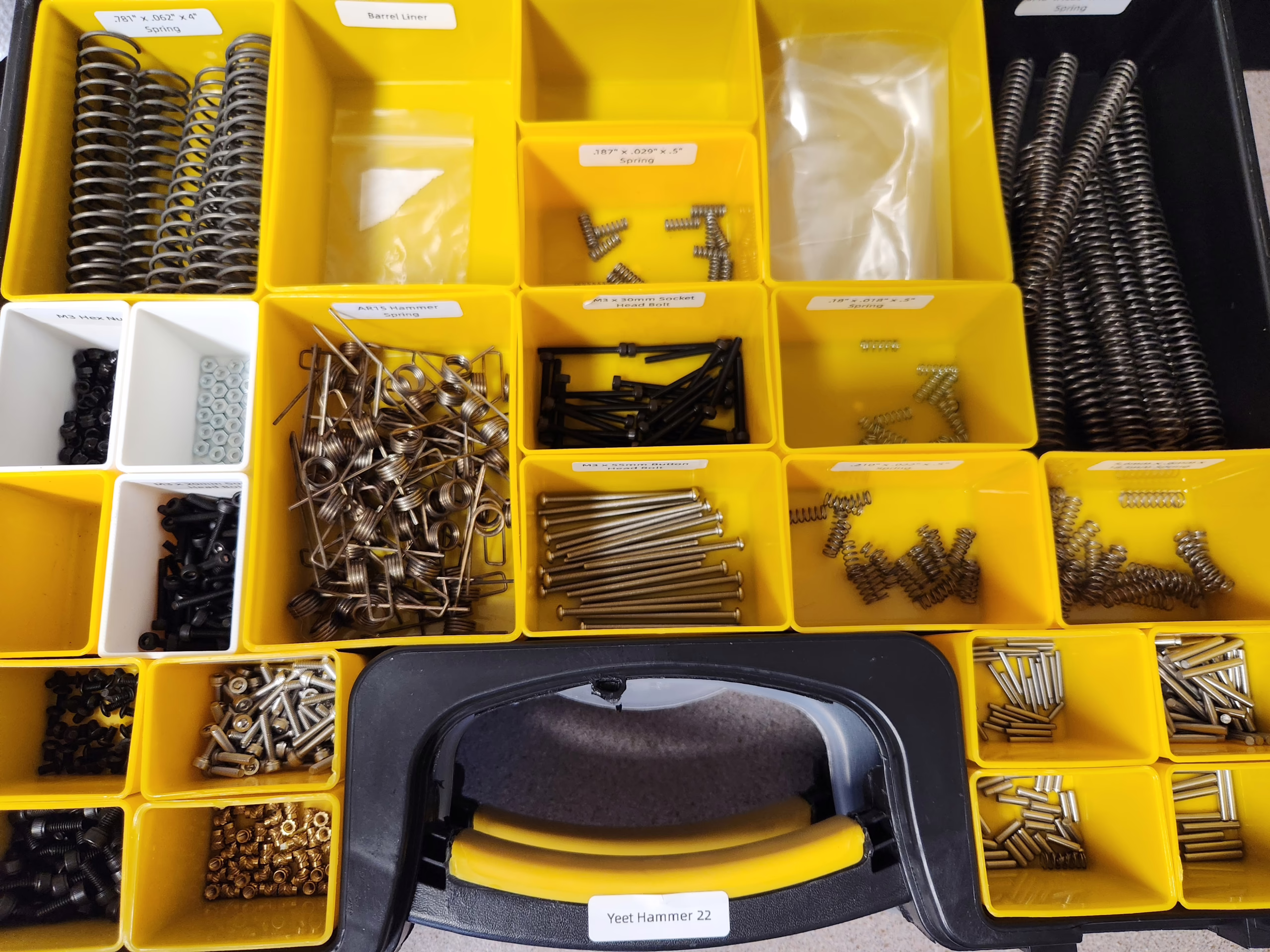

Complete list of hardware included below(Subject to change):
| Exact Part | Length | Count |
| .781” OD x 062” wire x 11” spring | MIN 4.00in | 1 |
|
ar15 hammer spring
|
1 | |
|
.18″ OD x .018″ wire x .5″ spring
|
1 | |
|
.187″ OD x .029″ wire x .5″ spring
|
1 | |
|
.210″OD x .022″ wire x .5″ spring
|
1 | |
|
5.63mm OD x .63mm wire x 18.5mm spring
|
2 | |
|
M3 steel hex nut
|
6 | |
|
M3 x 20mm socket head screw
|
2 | |
|
M3 x 30mm socket head screw
|
5 | |
|
M4 x 10mm socket head screw
|
1 | |
|
M3 x 15mm socket head screw
|
1 | |
| 2x16mm dowel | 1 | |
| 3x10mm dowel | 1 | |
| 3x20m dowel | 1 | |
| 3x26mm dowel | 1 | |
| 3mm threaded rod, for firing pin | 55mm | 1 |
| barrel liner (unthreaded opon) | 4.5in | 1 |
| Barrel liner (“soballer” opon) | 6.5in | 1 |
| Barrel liner (compact opon) | 3.75in | 1 |
|
M3 x 5mm buon head screws
|
4 | |
| M3 heat inserts | 4 | |
| .42” OD x .035” wire spring stock (Magazine spring) | 4.625 | 1 |
| Weight | .25 lbs |
|---|---|
| Dimensions | 4 × 4 × 2 in |
| Barrel Length | 3.75", 4.5", 6.5" |
$49.99 – $59.99
