For the fan of wheel guns

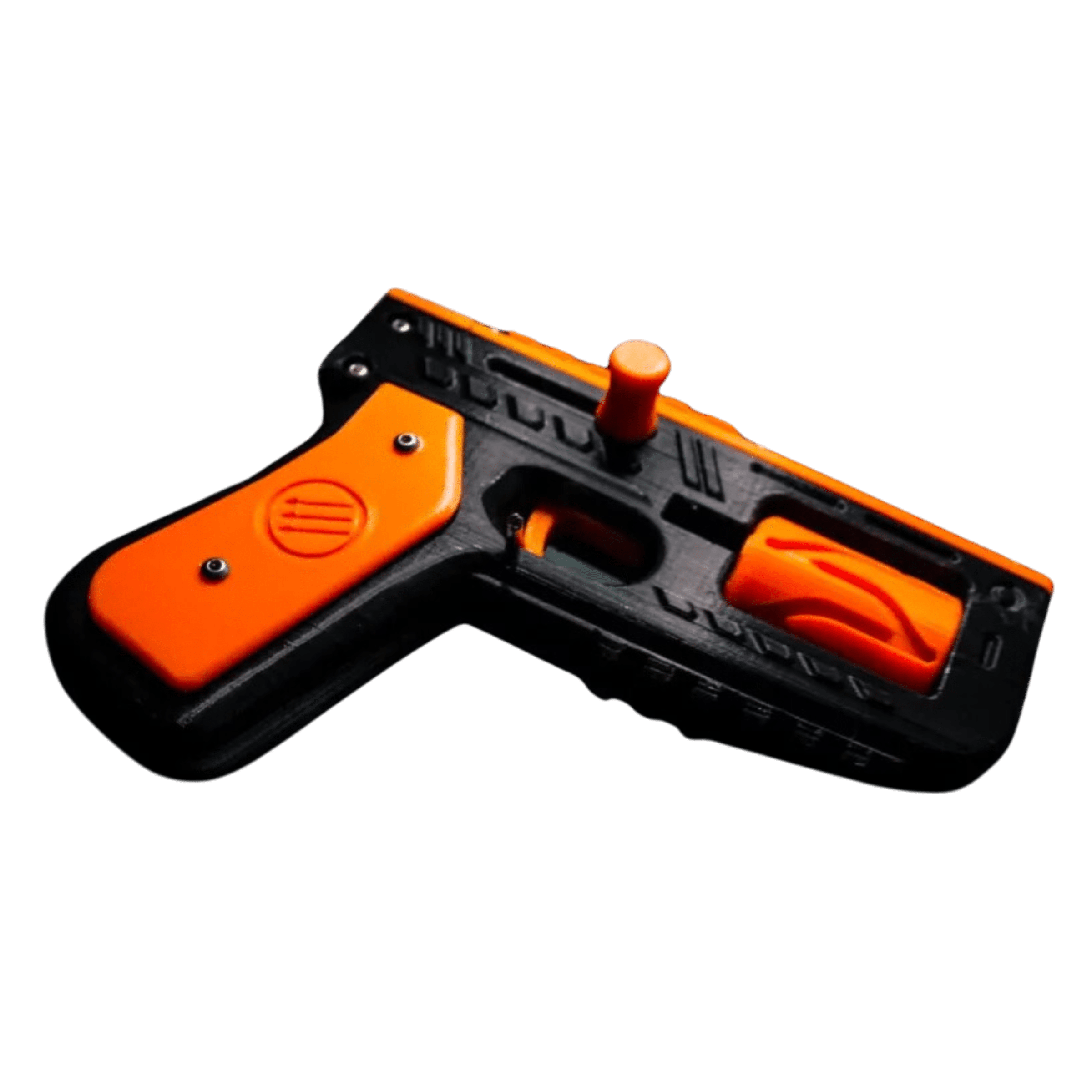

One of the few entirely 3d printed revolvers. Chambered in 22 Short for increased reliability.
Troubleshooting: Some have had issues with ejection or cases sticking. After drilling a chamber, please use rolled sandpaper
to finish the chamber and ensure it’s smooth and polished, especially at the mouth of the chamber.
There should be no burrs or rough edges for best operation.
Disclaimer
This product includes STL files and basic instructions only.
This build is not print-in-place. This design requires skilled machining and assembly of additional components for complete assembly.
You will need a drill at minimum, and a rotary tool with cutoff wheel can be used for most else.
M3 Screws – Button Head Assortment
M3 Screws – Cap Head Assortment
M5 x 65mm Cap Head Screw
Firing Pin (1/16″ Drill Bit)
Plastic Safe Grease
5/16” Ball Bearing
3MM Guide Rods
Striker Spring: 0.8mm x 6mm x 50mm Stainless Steel Compression Spring
Return Spring: .025 WG 1⁄4” Compression Spring cut to 80mm length. Midwest Fastener 88279.
Coming soon…
