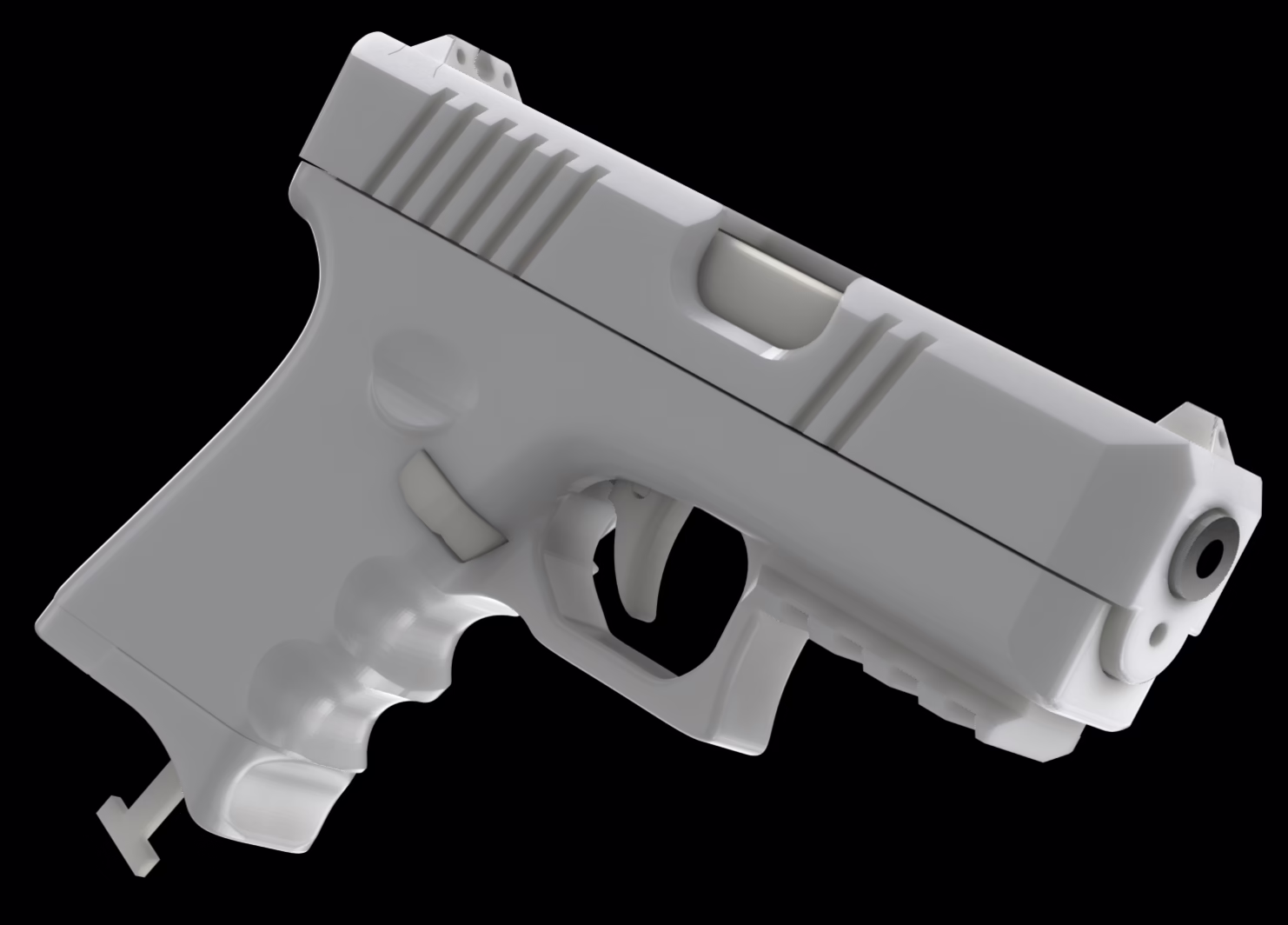

The pocket pistol you've been waiting for
My new design is my answer to all the people in this comunity that only seem to print glocks. .22lr Yes its fully printed.yes its semi-auto. Yes its full DIY. Yes it can fit in anyones pocket. All parts snap togeter. Very few supports needed.
Name | Count | Exact Part |
Magazine Spring | 1 | .7mm WG, 12mm OD, 100mm spring |
Hammer Spring | 2 | 8mm x 60mm Die Spring (Light Load) |
Hammer insert | 1 | Cut from Firepin 4mm from end |
Trigger Spring | 1 | 5mm x .8mm x 22mm |
Grub Screw | 1 | M3 x 10mm Grub Screw |
Flat Head Cap Screw | 1 | M3 x 12mm |
Fire Pin Spring | 1 | .4mm x 4mm x 10mm spring |
Firing Pin | 1 | SL2.5 ¼ Hex Shank 75mm long |
Firing Pin Retainer | 1 | M3 x 5mm Standoff |
Firing Pin Retainer Lock | 1 | M3 x 3mm Grub |
Internal Trigger Spring | 1 | 2mm od spring |
Barrel | 1 | 85mm Chambered Barrel Liner (100mm for threaded) |
Guide Rod | 1 | 3mm x 65mm 304 Stainless Rod |
Guide Rod Spring/Recoil Spring | 1 | .8mm WG, 8mm OD, 70mm Length |
Bolt Weight | 1 | 50g Tungsten Powder |
Disconnector Spring | 1 | 8mm x .8mm wg x 10mm spring |
